Complying with The International Cutting Test Standard for:
KITCHEN KNIVES | HUNTING, POCKET & FOLDING KNIVES | MACHINE BLADES | AGRICULTURAL BLADES | BOX CUTTERS & TOOL KNIVES | LARGE MEDICAL BLADES | WOOD CHISELS
The SAET answers the questions “How sharp is the blade?” and “How long will the sharpness last?”
- Measures the edge sharpness and durability of a large range of blades and knives for quality control, research and development, and competitor product evaluation.
- Quickly and accurately measures important cutting performance data.
- Conforms fully to the International Cutting Test Standard BS EN ISO 8442-5 : 2004.

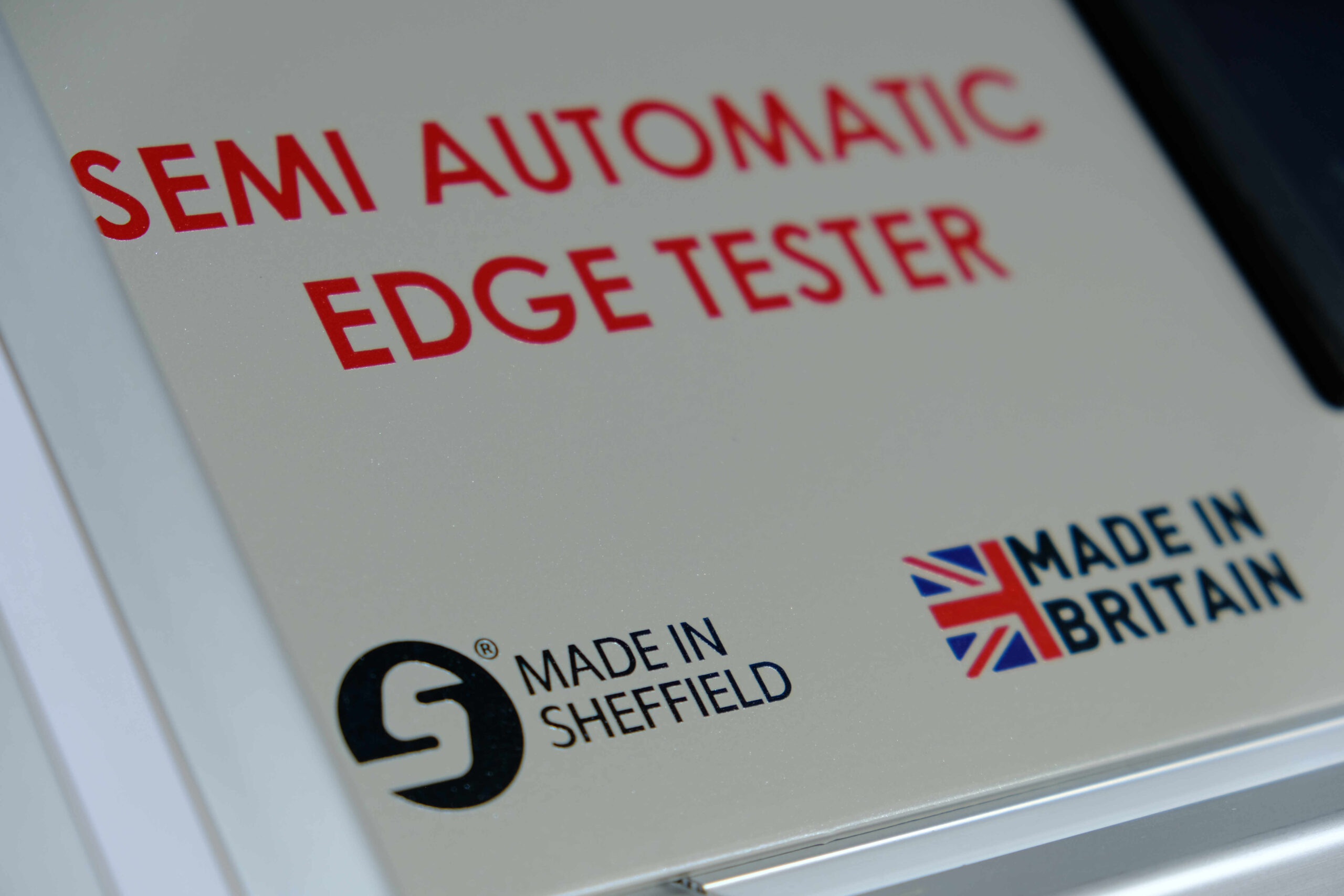

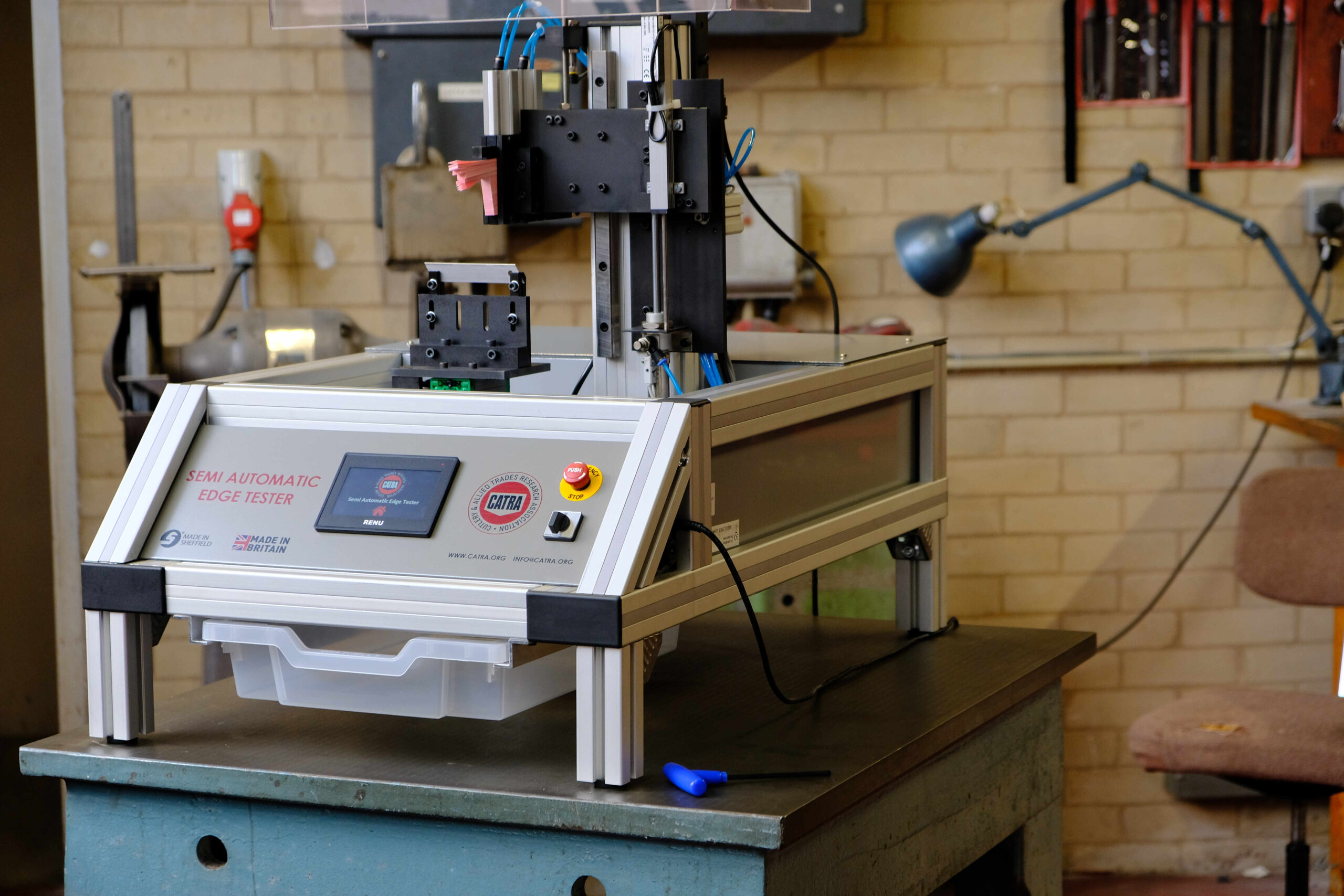

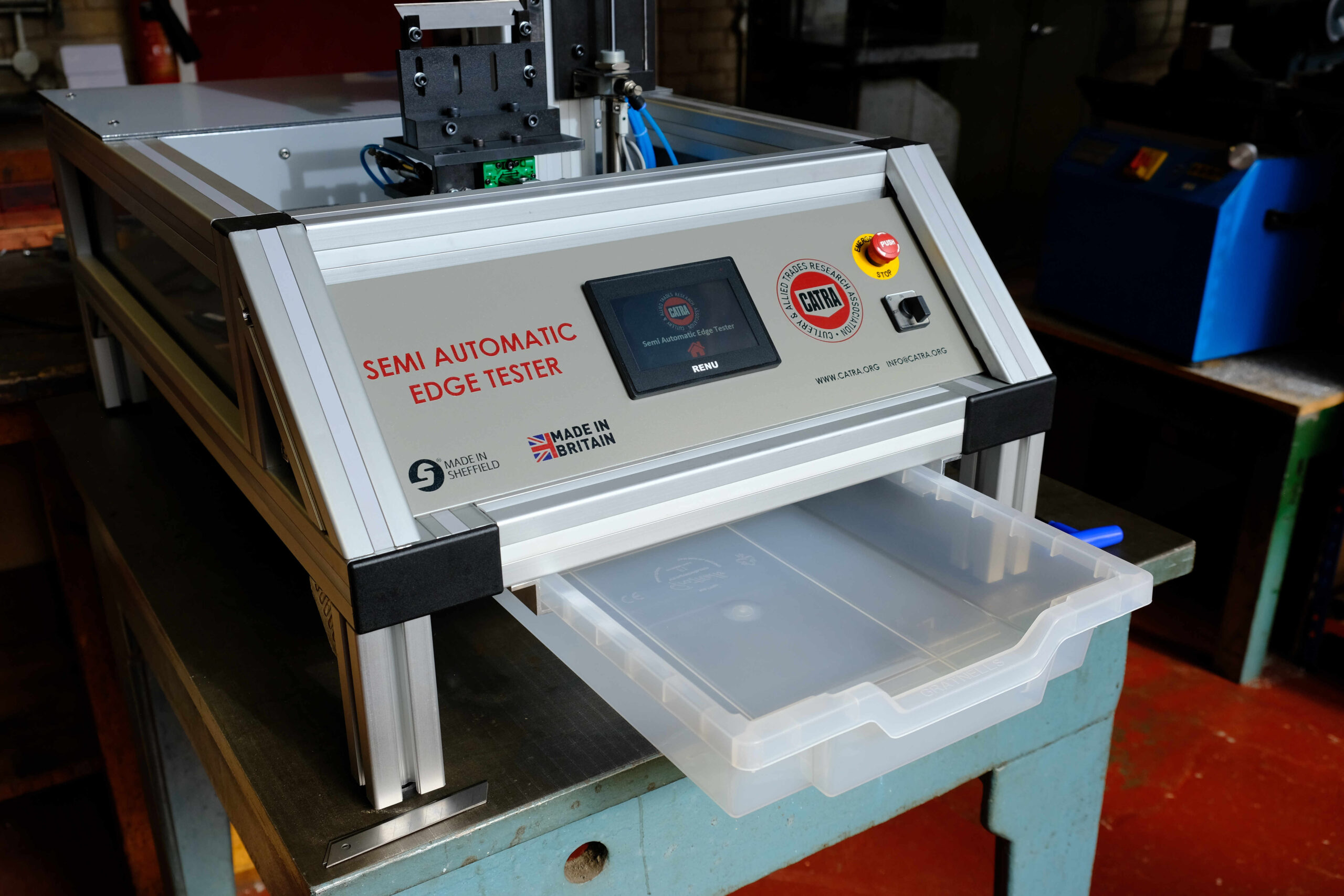

- Semi-automatic test machine is ideal for smaller research projects and low volume quality control use.
How it works:

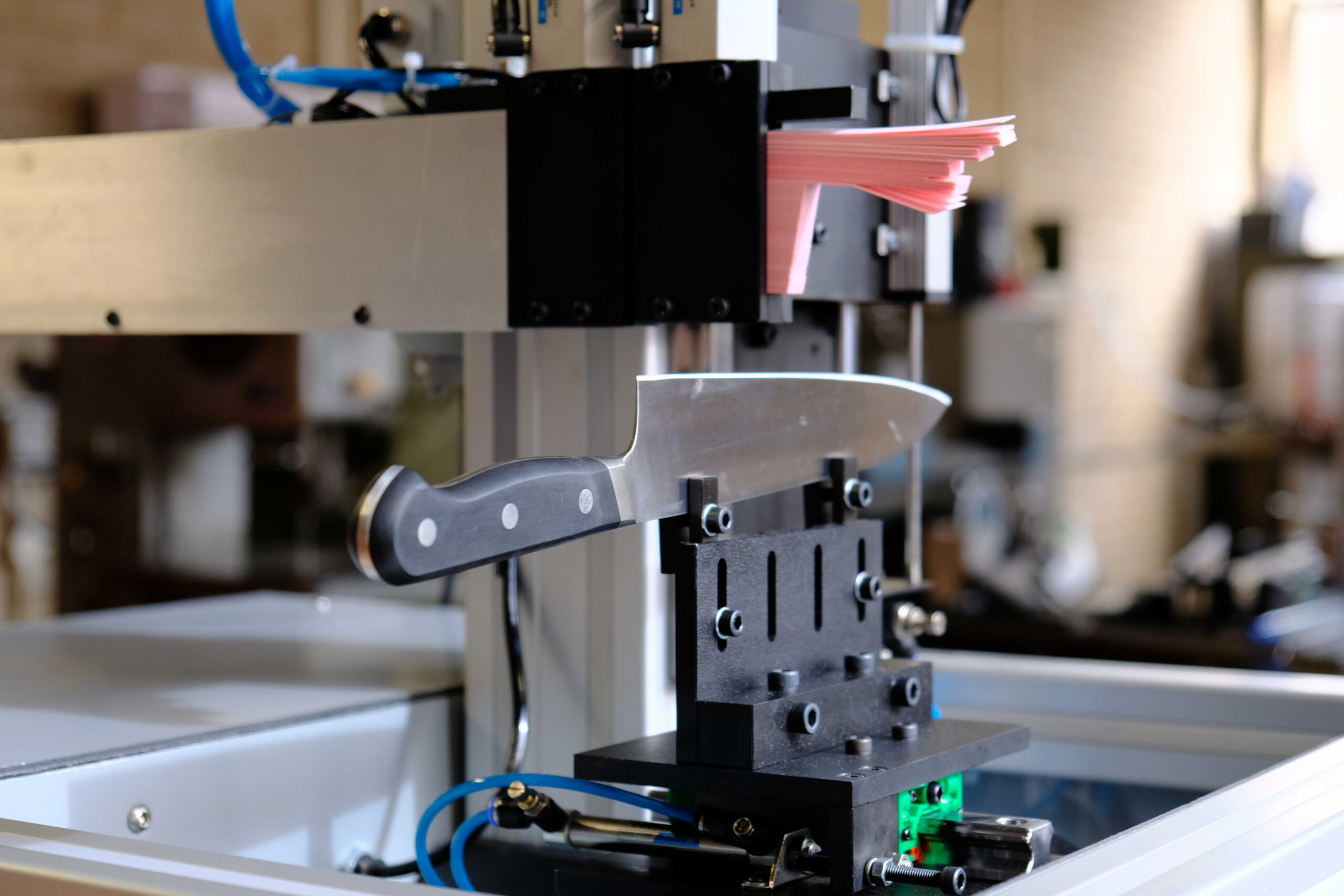

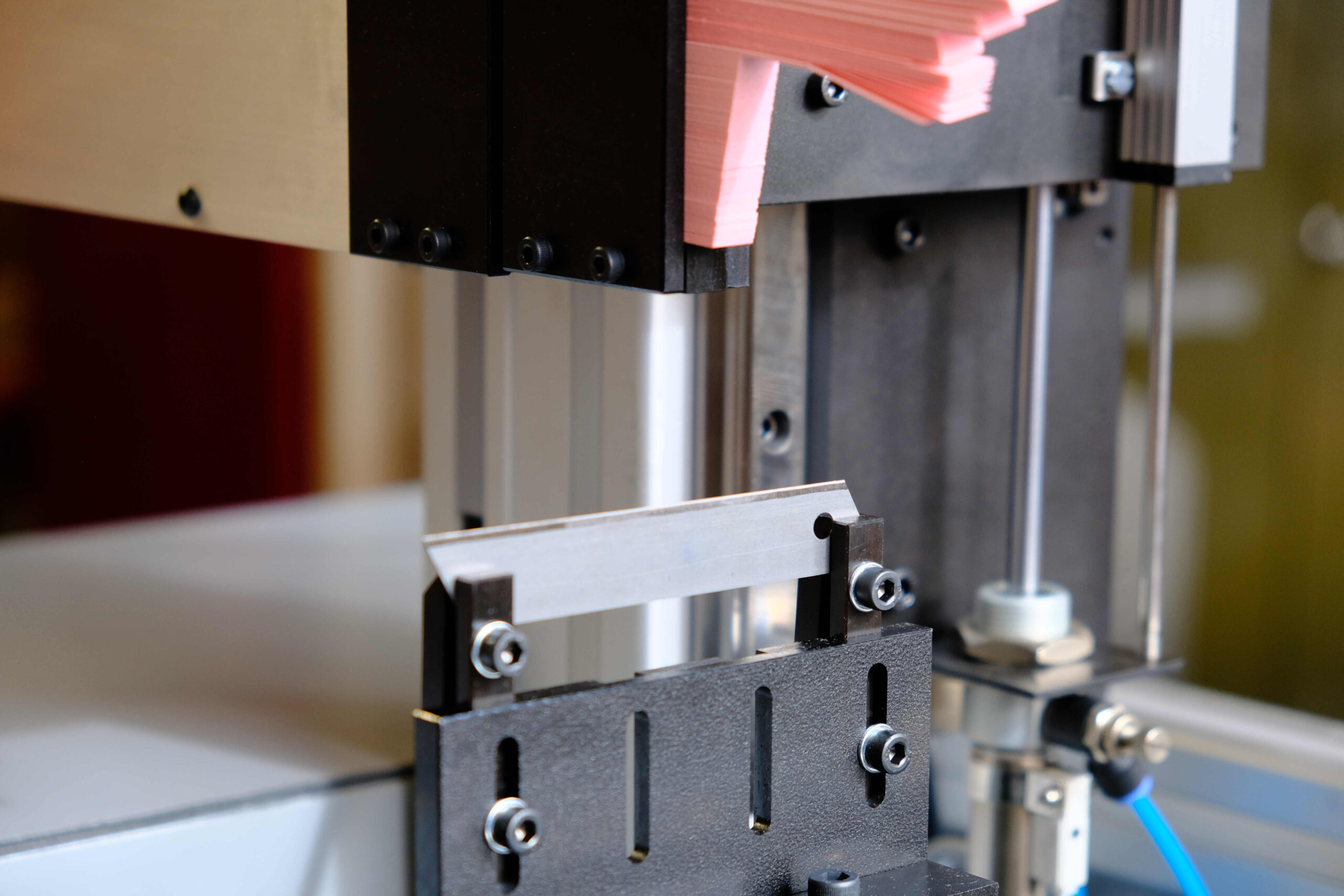

The cutting-edge to be tested is mounted vertically and a pack of specially developed synthetic card is lowered on to it. By moving the blade back and forth repeatedly, the blade cuts into the paper; the depth of the cut being the measurement of sharpness. The test card is loaded with 5% silica, which has a mild wearing effect on the blade edge. The measurement of cut depth at each subsequent stroke can then be plotted to produce a wear curve for each blade tested.
Specifications
| Semi-Automatic Model | Automatic Model | |
| Test Stroke | fixed 25mm or 40mm (chosen at the time of ordering) | Adjustable 0 to 128mm, Standard test 40mm |
| Test Cutting Speed | fixed 50mm/s | Adjustable 0 to 150mm/s (standard test 50mm/s) |
| Test Load | 50N | 25N and 50N (standard test) |
| Optional counter-balance | not available | 0 to 25N counter-balance weights for delicate blades |
| Max Depth of Cut | 50mm | 50mm |
| Overall Vertical Capacity | 105mm (including 50mm of cut) making maximum blade width 100mm | 105mm (including 50mm of cut) making maximum blade width 100mm |
| Size | 700mm x 430mm x 1000mm, work bench mounted | 1700mm x 1800mm x 2000mm, own integral frame |
| Weight | 40kg | 300kg |
| Computer Hardware | Controlled a programmable logic controller. Data output can be captured with an optional interface. | PC system built in to the equipment. Compatible with Microsoft Excel and Access to provide data analysis, reporting and database facilities. |
Specifications – Test Media
Specially formulated card with silica content of 5%, this test card is critical to the accuracy of the test system:
| Weight | 5kg per pack |
| Thickness | 0.31mm ± 0.02mm |
| Size | 10mm wide x 560mm long |
Our automatic (AET) and semi-automatic machines are available for sale – Contact Us for a quote. The test media for these machines are available from our online shop.
We offer full independent and confidential Testing Services based on these machines.
